Completely submersible bilge pumps | 12v | 95 l/min

£43.00 Price ex.Vat

In stock (can be backordered)

06 - 10 units | Per unit: £38.70
11 - 20 units | Per unit: £36.55
21 - 99 units | Per unit: £34.40

Description

This pump is designed for use with fresh and salt water only. Use with any other medium, including particularly hazardous, caustic or corrosive substances, could result in damage to the pump, the surrounding environment and injury to persons or property, including possible exposure to hazardous substances.

Technical data:

  • Voltage: 12V
  • Ports: 26,5mm
  • Consumption (A): 10
  • Fuse (A): 20
  • Lift (m): 4
  • Flow rate (l/min): 95
  • Hose (mm): 30
  • Motor power (W): 120
  • Dimensions (mm): Ø96×160
  • Weight (kg): 1,5
  • Reference: 160 140 12
  • Type: UP1500

IP 67 Code protection international
IP First number – Protection against solid objects. IP Second number – Protection against liquids. Most environmentally sealed Pocket PCs are rated IP67. They are protected from dust and capable of withstanding water immersion between 15 cm and 1 meter for 30 minutes.

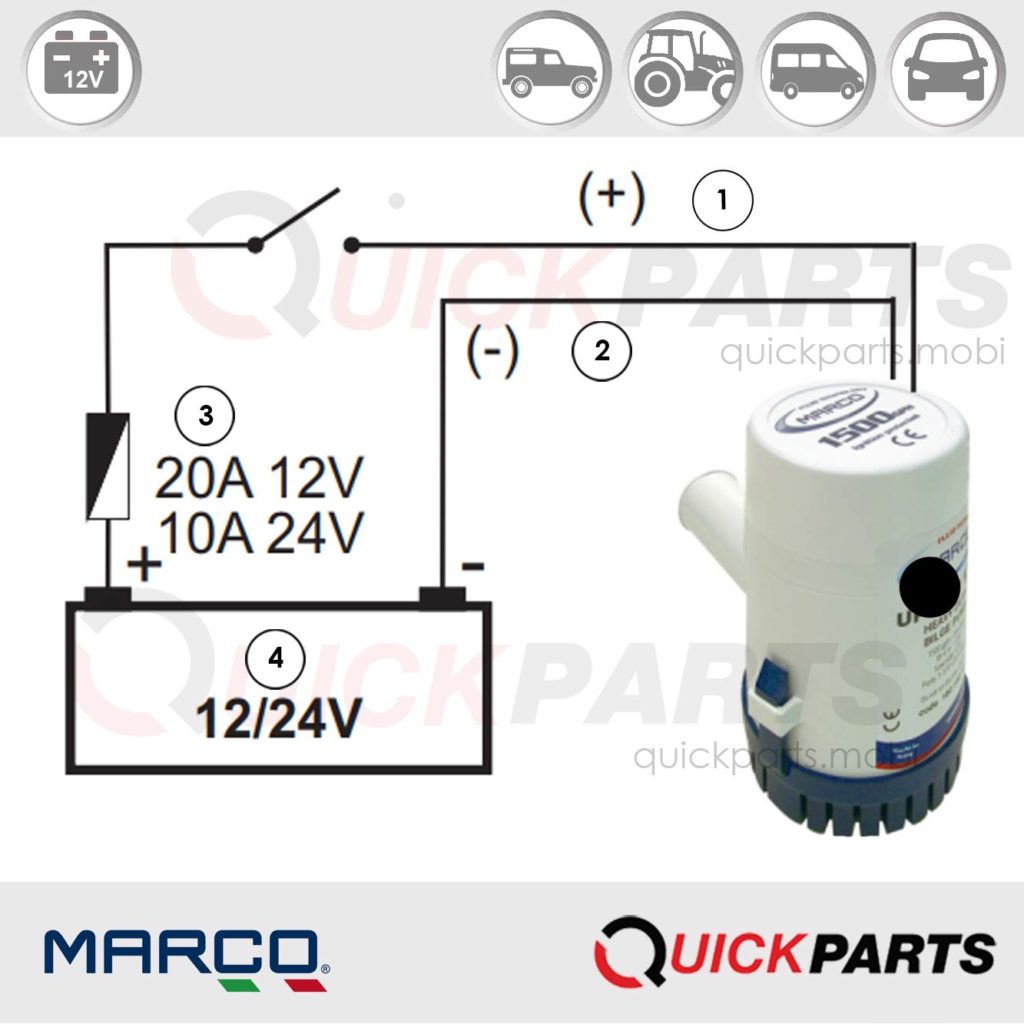

Wiring diagram

Completely submersible bilge pumps | 12v
1. Brown 2. Black 3. Fuse 4. Battery

Mounting

This pump is designed for use with fresh and salt water only. Use with any other medium, including particularly hazardous, caustic or corrosive substances, could result in damage to the pump, the surrounding environment and injury to persons or property, including possible exposure to hazardous substances. This pump is for water applications only.

Disassemble as follows:

  • squeeze the tabs on each side of the blue strainer and lift the white power module out of the blue strainer
  • mount strainer with stainless steel screws (screw holes on bottom of strainer).

Reassemble as follows:

  • after mounting the blue strainer, replace white power module.

Plumbing

  • use correct bilge pump hose.
  • the hose run should be as short and steep as possible. This will help to eliminate air pockets which can cause air-locking.
  • attach all hoses to pumps with correct stainless steel hose clamps.

Electrical

  • brown (+) wire is positive and connects to the positive terminal of the battery. Black (-) wire is negative and connects to the negative terminal of the battery.
  • install the proper fuse (2,5A a 12V e 1,2A a 24V) in the brown wire somewhere between the pump and the battery.
  • the electrical installation has to be done in a dry place in order to avoid contact with water.



Additional information

Weight 1600 g
Dimensions 96 × 116 × 143 mm
