Self-priming electric pumps for transferring various liquids | 12v

£98 Price ex.Vat

Description

Self-priming electric pumps of small dimensions with bronze gears for transferring of liquids. Pump body in nickel-plated brass and stainless steel shaft. Main applications: transfer of diesel fuel, antifreeze.

Technical data:

  • Voltage: 12V
  • Consumption (A): 6
  • Fuse (A): 10
  • Self-priming (m): 1,5
  • Pressure (bar): 2
  • Flow rate (l/min): 15
  • Ports (BSP): 3/8¨
  • Hose (mm): 13
  • Motor power (W): 120
  • Weight (kg): 1,4
  • Reference: 164 000 12
  • Type: UP3

IP Protection 67

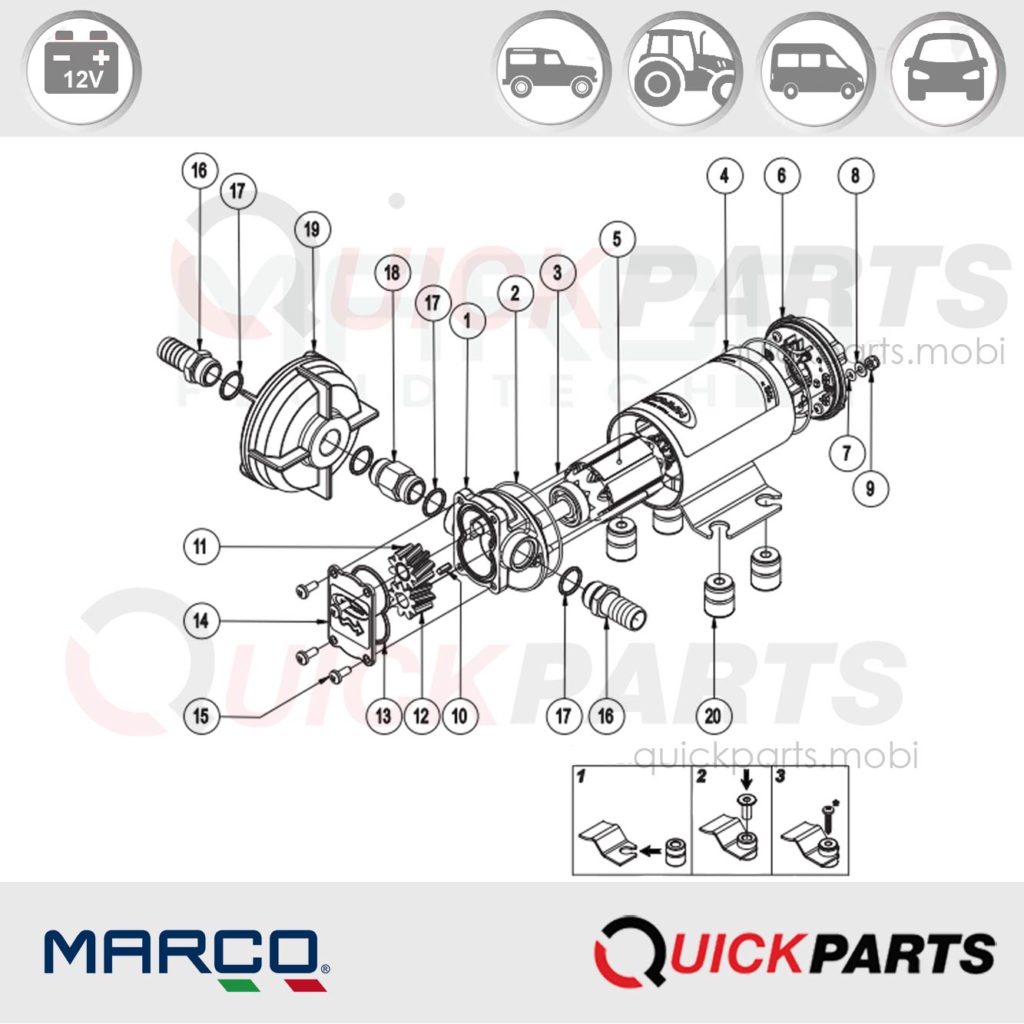

Exploded view diagram

Self-priming electric pumps for transferring various liquids | 12v
1. Pump body 2. O-ring 3. Ros 4. Pump frame 5. Amature 6. Brush Holder 7. O/ring 8. Washer 9. Nut 10. Key 11. Idle gear 12. Driving gear 13. O/ring 14. Top plate 15. Screw 16. Tube Outlet 17. O/ring 18. Nipple 19. Filter 20. Antivibration mount



Additional information

Weight 1400 g
