Back-up alarms designed | 9/28v | 105dB

£22.00 Price ex.Vat

In stock (can be backordered)

06 - 10 units | Per unit: £19.80
11 - 20 units | Per unit: £18.70
21 - 99 units | Per unit: £17.60

Description

Universal voltage waterproof horn with intermittent sound, particularly suitable for signalling operations such as: opening of deck and engine compartment; pulling out of gangways; crane, davit and cathead operating; malfunctioning of electronic devices.

Features:

Back-up alarms designed for forklift, excavators, buses, trucks and earth moving machines. Universal voltage 6-100V. Waterproof IP68. Professional loudspeaker 16 , controlled by a microprocessor with EMI filter protection. Two different sound pressures: 85 and 95 dB. Resistant from -30° up to +80°C. Two positions fixing.

Technical data:

  • Voltage: 9/28V
  • AMP: 0,5
  • dB (A): 105
  • Hz: 1850
  • Weight (kg): 0,2
  • Reference: 104 121 15
  • Type: BK2

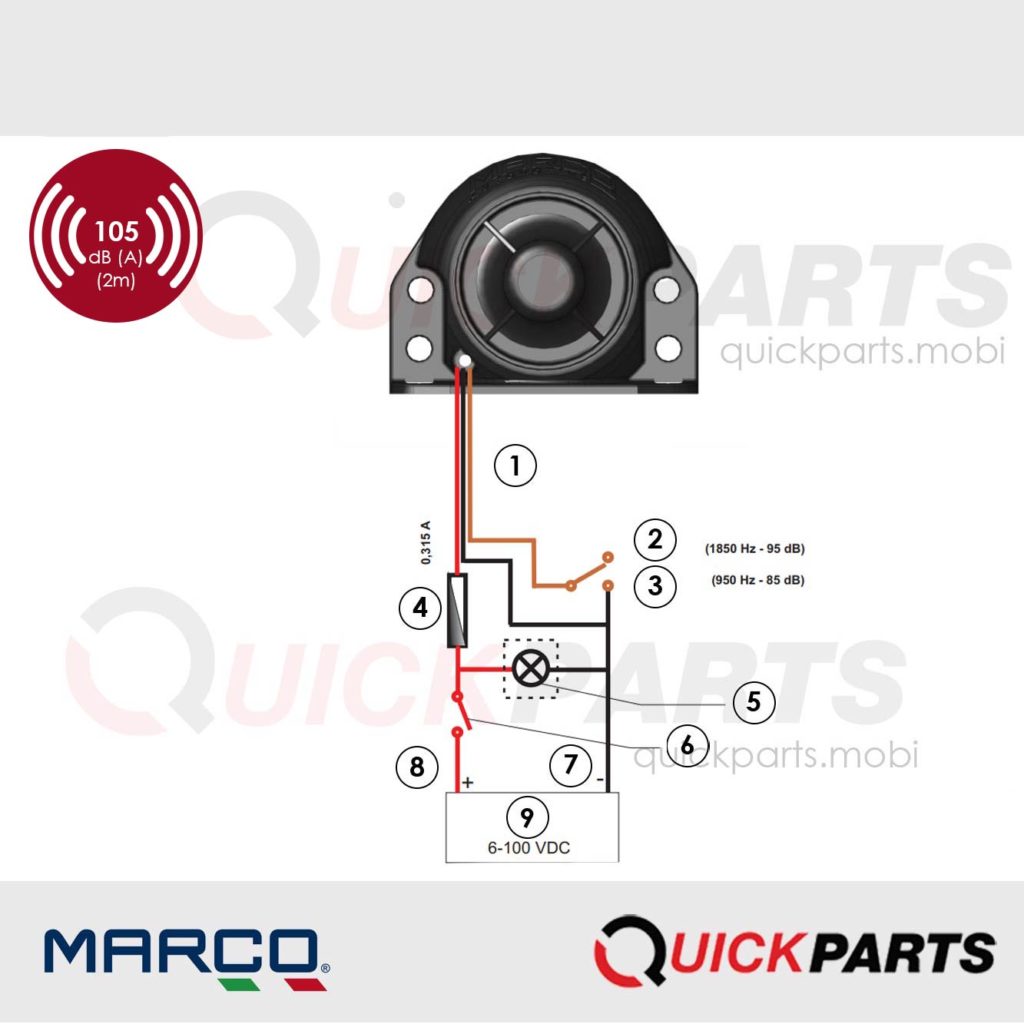

Wiring diagram

Back-up alarms designed | 9/28v | 105dB
1. Selection Brown 2. High 3. Low 4. Fuse 5. Back up light 6. Back up switch 7. Black 8. Red 9. Power supply

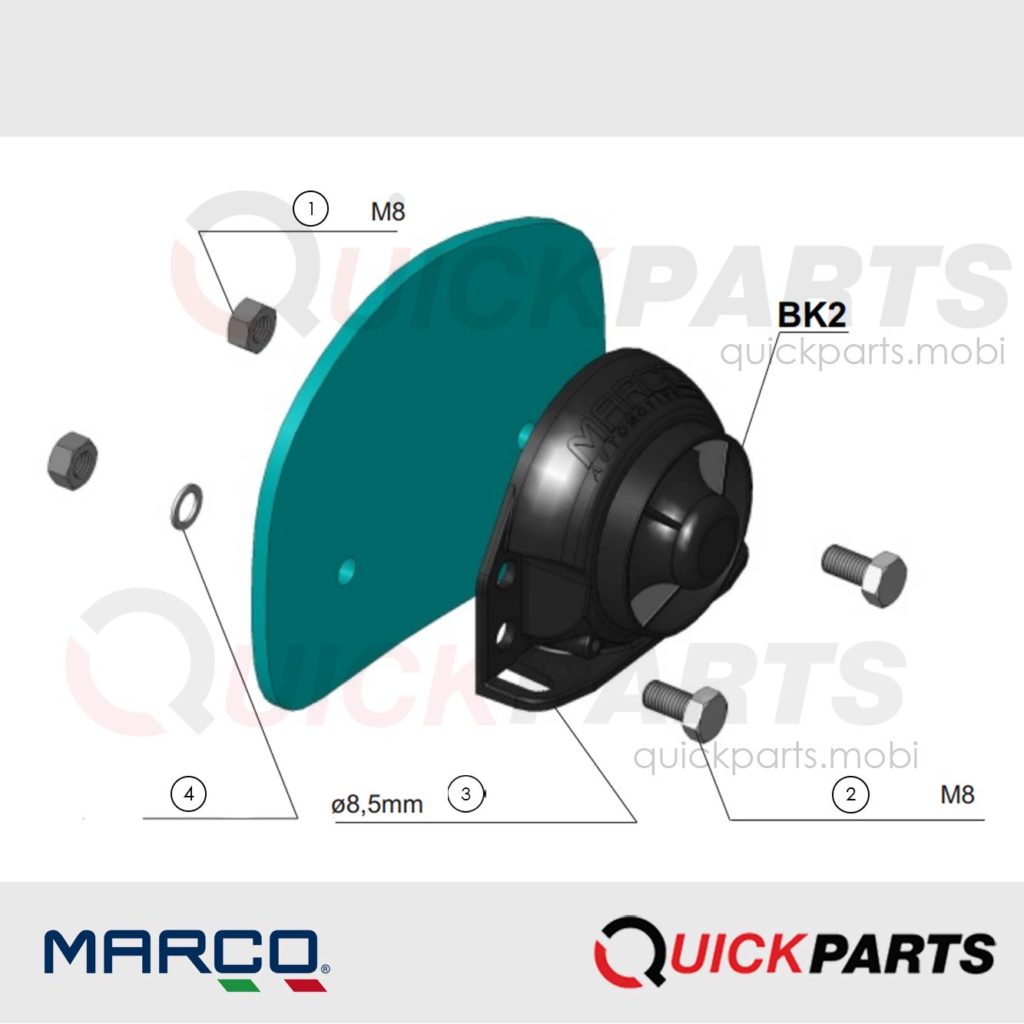

Composition diagram

Back-up alarms designed | 9/28v | 105dB
1. Nut 2. Screw 3. Screw Hole 4. Washer



Additional information

Weight 300 g
Dimensions 103 × 44 × 80 mm
