Gear pump for lubricating oil | 12V | UP3/OIL

£86.00 Price ex.Vat

In stock (can be backordered)

06 - 10 units | Per unit: £77.40
11 - 20 units | Per unit: £73.10
21 - 99 units | Per unit: £68.80

Description

Self-priming electric pumps with helical bronze gears for transferring lubricating oils and viscous liquids. Nickel-plated brass body and stainless steel shaft. Particularly suitable for draining engine sumps with the special tubes kit (OK1) and for engines lubricating operations.

Technical data:

  • Voltage: 12V
  • Consumption (A): 5
  • Fuse (A): 7,5
  • Self-priming (m): 1
  • Pressure (bar): 2
  • Flow rate d.6 (l/min): 0,3
  • Flow rate d.8 (l/min): 1
  • Flow rate d.13 (l/min): 5,5
  • Ports (BSP): 3/8″
  • Hose (mm): 13
  • Motor power (W): 90
  • Weight (kg): 1,4
  • Reference: 164 020 12
  • Type: UP3/OIL

Ip Protection 67

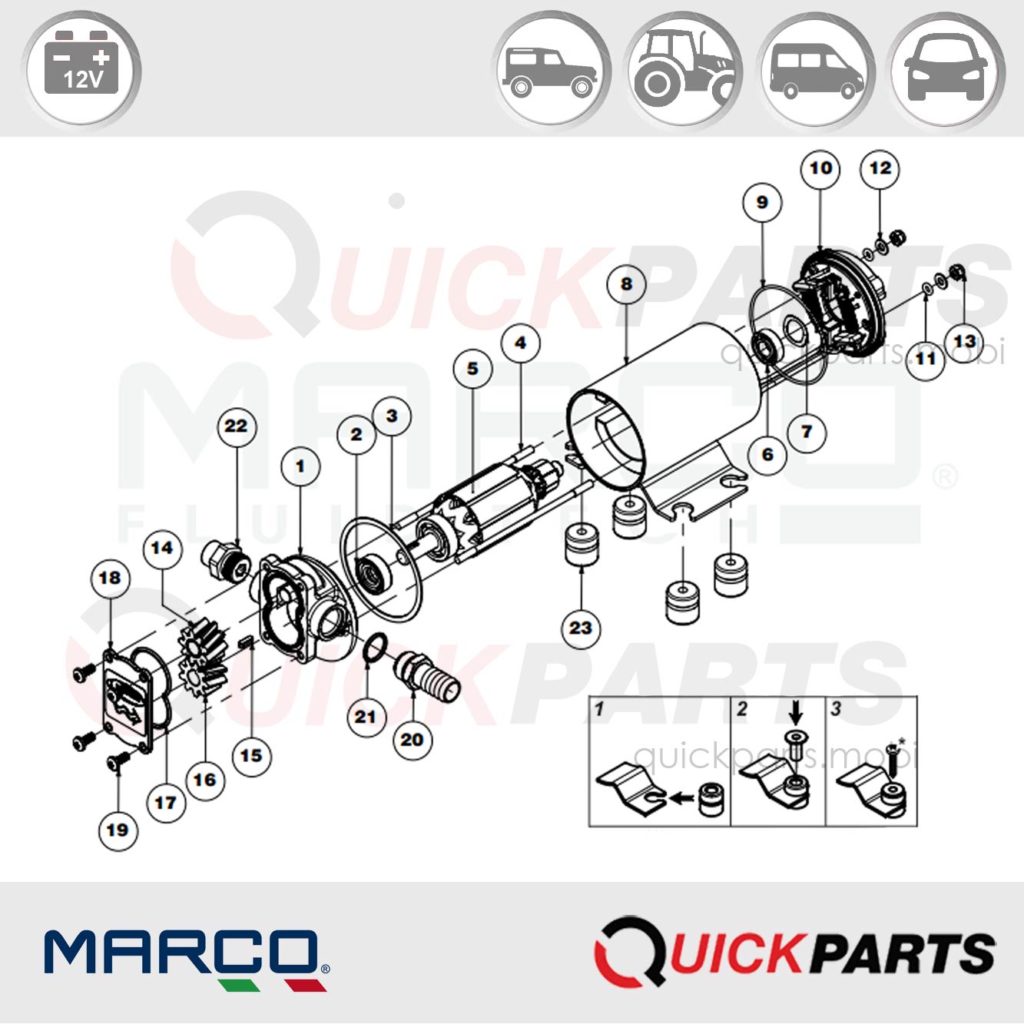

Exploded view

Gear pump for lubricating oil | 12V | UP3/OIL
1. Pump body 2. Rubber lip seal 3. Gasket 4. Rod 5. Armature 6. Ball bearing 7. Compensation spring 8. Pump frame 9. O-ring 10. Brush holder 11. O-ring 12. Washer 13. Nut 14. Idle gear 15. Key 16. Driving gear 17. O-ring 18. Top plate 19. Screw 20. Tube outlet 21. O-ring 22. Nipple 23. Antivibration mount



Additional information

Weight 1500 g
Dimensions 108 × 88 × 135 mm
