Description

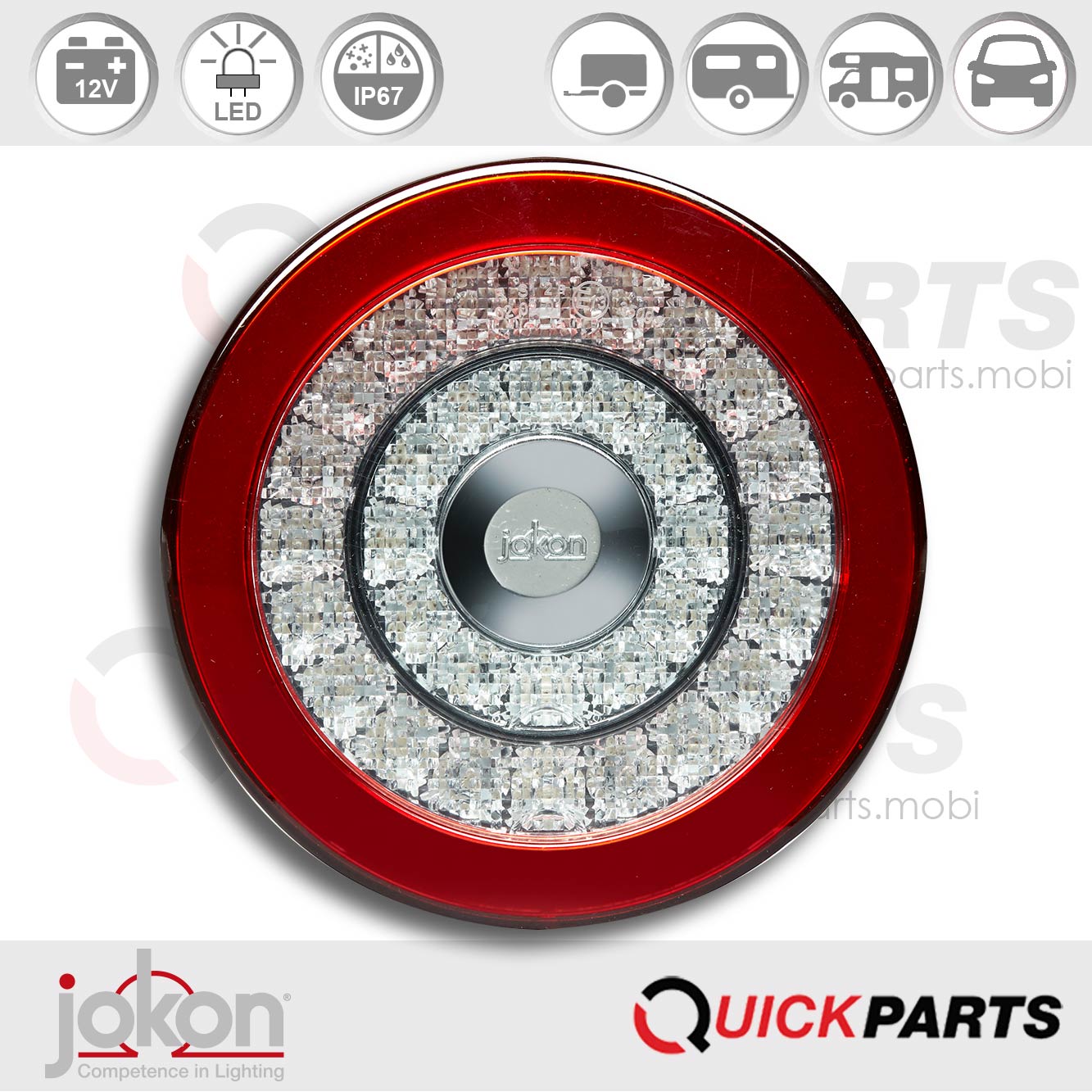

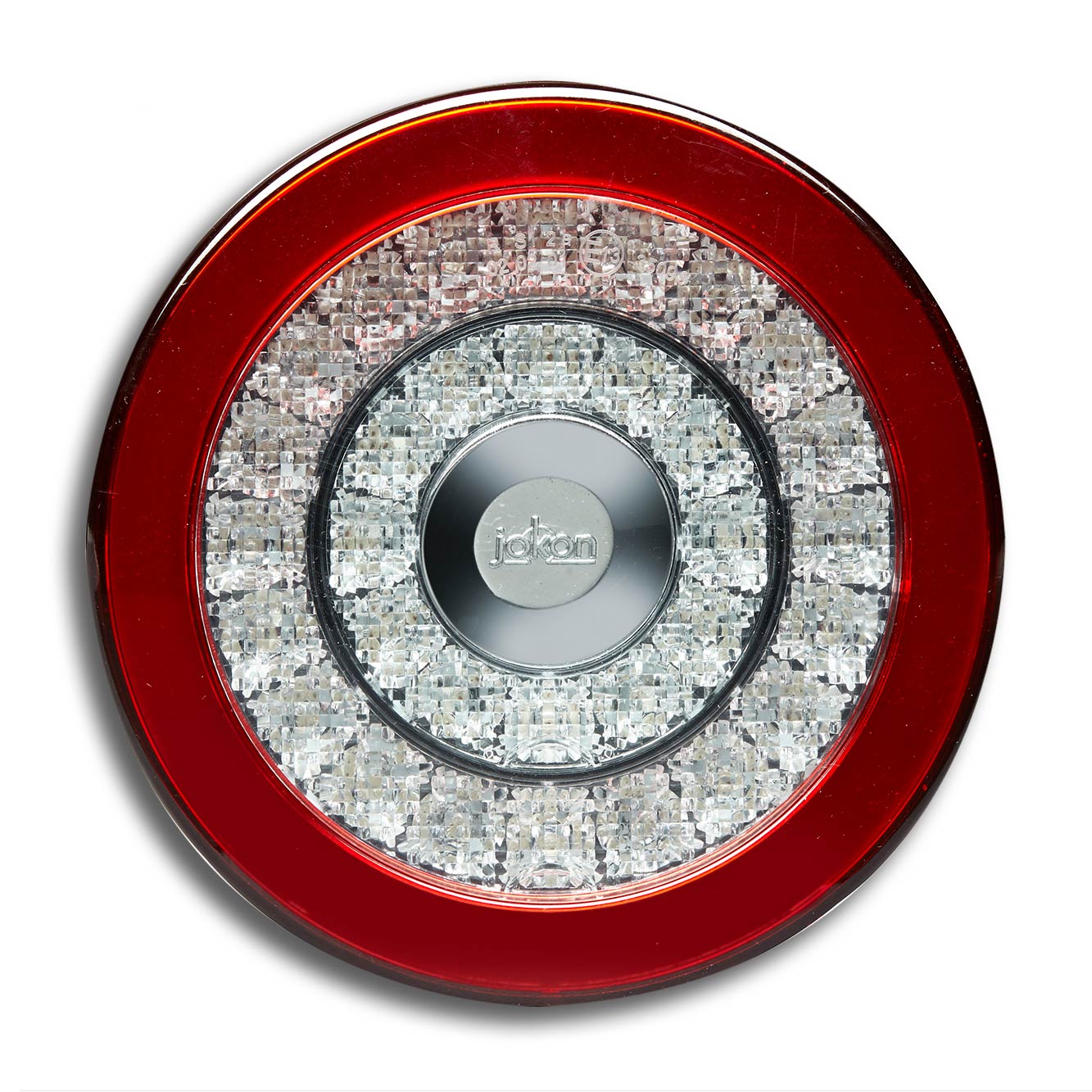

Jokon 10.1042.000 – E13-14682 EMV / EMC – BBS 112/12V
The L 112 lighting system with an outer diameter of 112 mm represents a successful symbiosis of Saphira lighting technology and fully homogeneous diffuser optics for the taillight function.
The LED lights are ready for plug-in, waterproof sealed, equipped with a non-visible membrane for thermodynamic balance and have a connecting cable of 500 mm length.
The lights are suitable for surface mounting and flush mounting
Features:
- Tail light
- Direction light
- Stop light
Technical data:
- Voltage: 12V
- Power: 4 / 3 / 3 W
- Connection: cable 500 mm
- Reference on the lens: E13-14682 EMV / EMC
- Reference: Jokon 10.1042.000
- Type: Jokon BBS 112/12V
- IP 67: Code, International Protection Marking.
Dust tight: No ingress of dust; complete protection against contact (dust tight)
Immersion up to 1 m: Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 m of submersion).
Ingress Protection code documentation
About Jokon
In the JOKON range, you will find high – quality lights for any application that enhance the individual design of your vehicle and set highlights.
Whether you are looking for a light for a bus, a tractor, a wheelchair, a camper or a trailer.
The range extends from normal bulb lights to sophisticated LED multiple function lights.
