Description

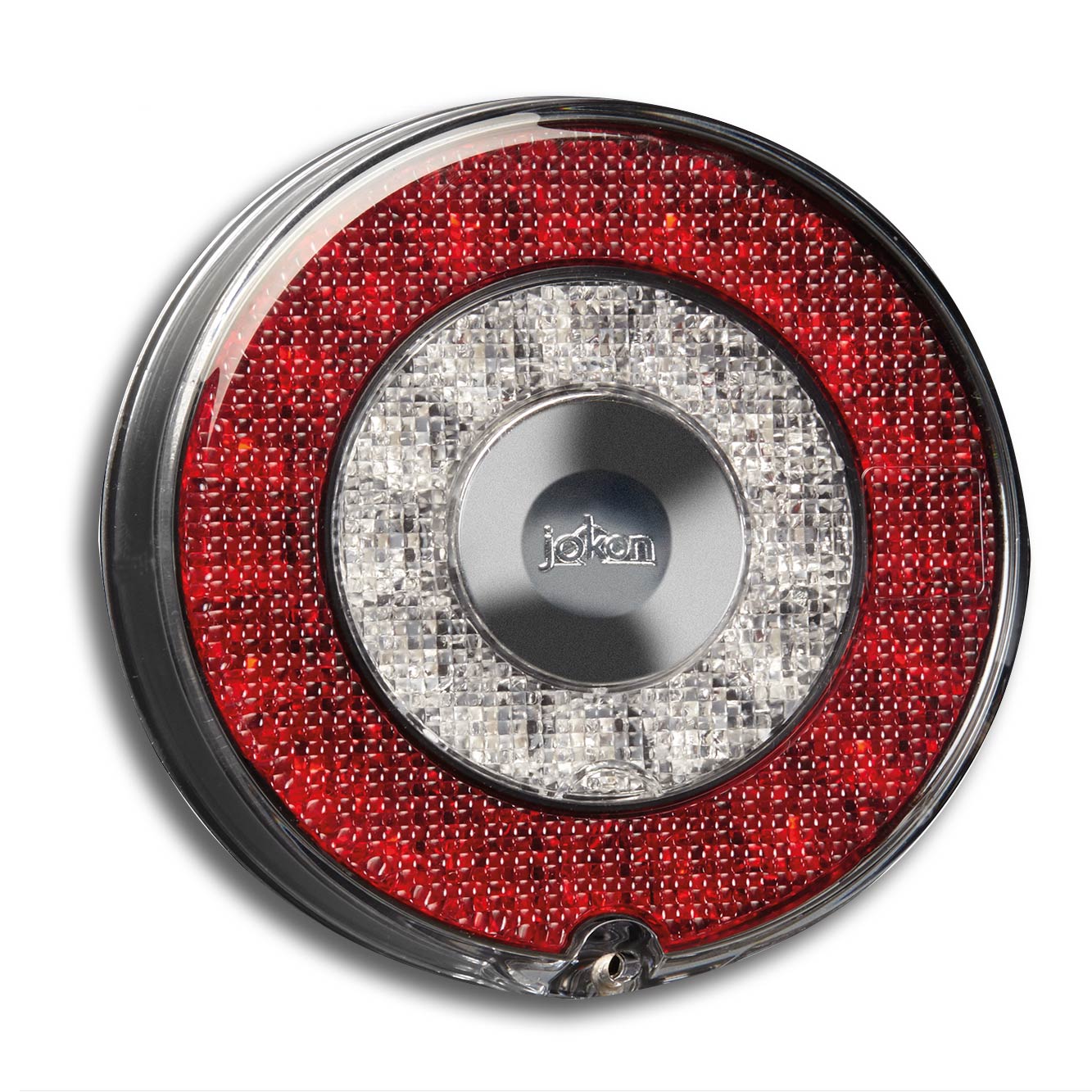

Jokon 13.3040.500, E13-34809, SN 780/24V
Latest lighting technology available as modular series of round shaped light with a diameter of 95mm. Selection of lighting elements on an individual basis. The special structure of the surface of the optical lense creates an homogeneous light pattern. Quick & Easy fixture: an adapter plate screwed on the vehicle allows to mount the light from the exterior (optional: stud bolts). Available in 12V or 24V variants.
Features:
- Fog light
- LED multifunction light with total-reflextion optic
- Surface mounting with bayonet joint (alternatively with bolts)
- Quick assembly and disassembly through locking pin
- Double sealed for optimal waterproofness.
- Including hidden membrane to balance thermodynamics
- EMC approval
- E13-34809
- DI function: with LDC (LED-Defect-Control) for combination with LED control device
Technical data:
- Voltage: 24V
- Power: 6W
- Connection: Cable 500mm
- Weight: 0,28 kg
- Reference on the lens: Jokon E13-34809
- Reference: Jokon 13.3040.500
- Type: Jokon SN 780/24V
- IP 67: Code, International Protection Marking.
Dust tight: No ingress of dust; complete protection against contact (dust tight)
Immersion up to 1 m: Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 m of submersion).
Ingress Protection code documentation
About Jokon Led Lighting System L780
About Jokon
In the JOKON range, you will find high – quality lights for any application that enhance the individual design of your vehicle and set highlights.
Whether you are looking for a light for a bus, a tractor, a wheelchair, a camper or a trailer.
The range extends from normal bulb lights to sophisticated LED multiple function lights.
