Description

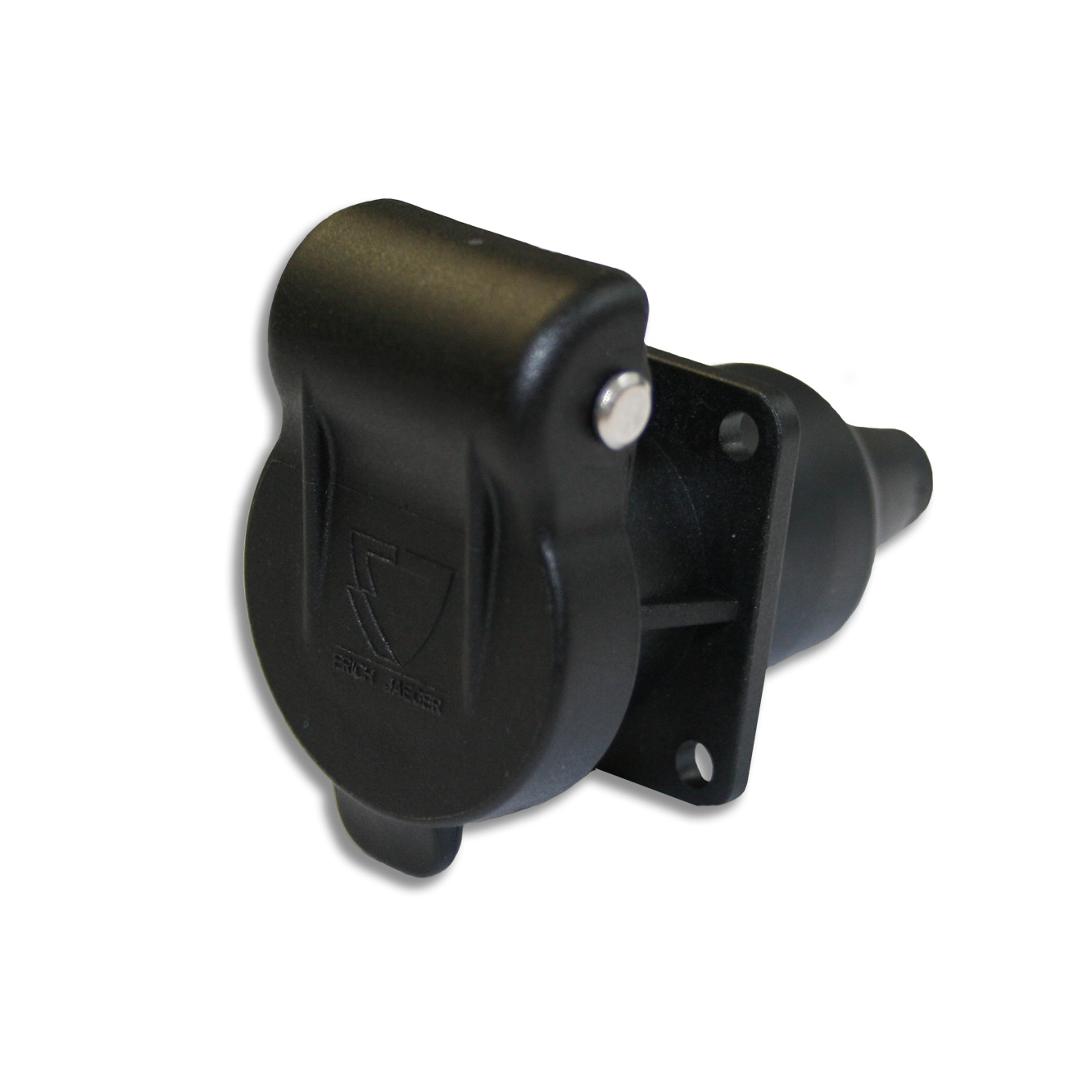

3P/6-24V(25A) Socket (DIN 9680)
Product information
- Article Number: 151167
- Categories: Socket
- Standards: DIN 9680
- Industries: Agriculture
Electrical Details and Temperature Resistance
- Rated current / permanent load [in A]: 25
- Voltage [in V]: 6-24
Packaging and Order Details
- Included in delivery: seal
- Packaging: without packaging
Design Features
- Design/Version: with 4-bolt-flange
- Type of seal: grommet
Material
- Contact surface: nickel (Ni)
- Cover material: reinforced composite
- Housing color: black
- Housing material: reinforced composite
Connectivity
- Contact termination: plug-in contact
- Contact version: contact sleeve
- Features of plug-in contacts: flat terminal
- No. of poles: 03
Norms and Standards
- Protection: IP 54, IP X4
Electrical Connectors Erich Jaeger
Erich Jaeger Ericoffers a broad range of trailer connectors for various industries. The unparalleled product portfolio includes sockets and plugs as well as cables and coils for the electrical connection of all kinds of vehicles: From agricultural and construction machinery to light and commercial vehicles to defense vehicles.
ERICH JAEGER is specialized in quality electrical connector systems that include plugs and sockets, adapters, controllers, spiral cables, cable junction components and E-Kits in order to provide a safe and secure connection between your towing vehicle and trailer in both heavy and light vehicle applications.
ERICH JAEGER offers a broad range of trailer connectors for various industries. The unparalleled product portfolio includes sockets and plugs as well as cables and coils for the electrical connection of all kinds of vehicles: From agricultural and construction machinery to light and commercial vehicles to defense vehicles.
