Description

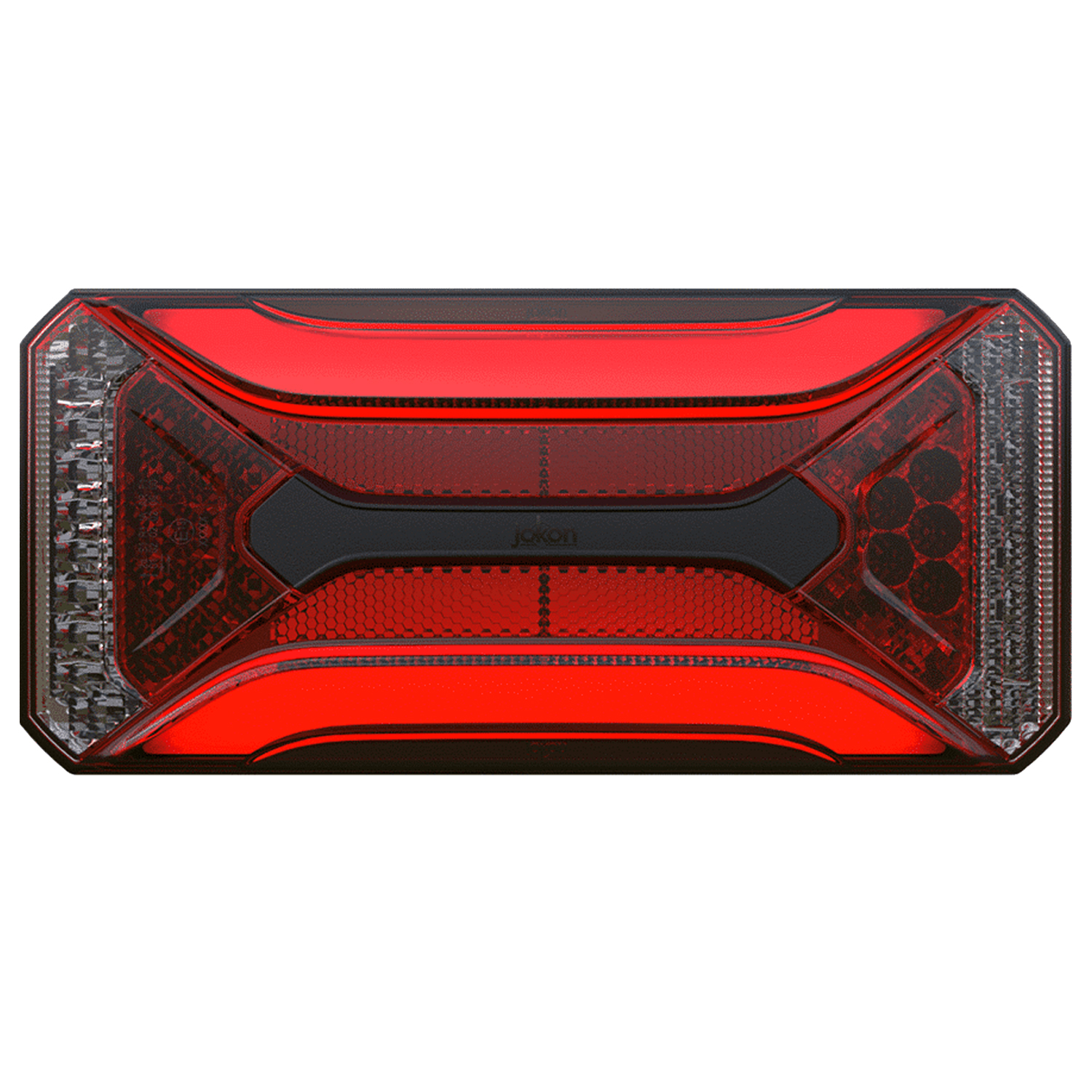

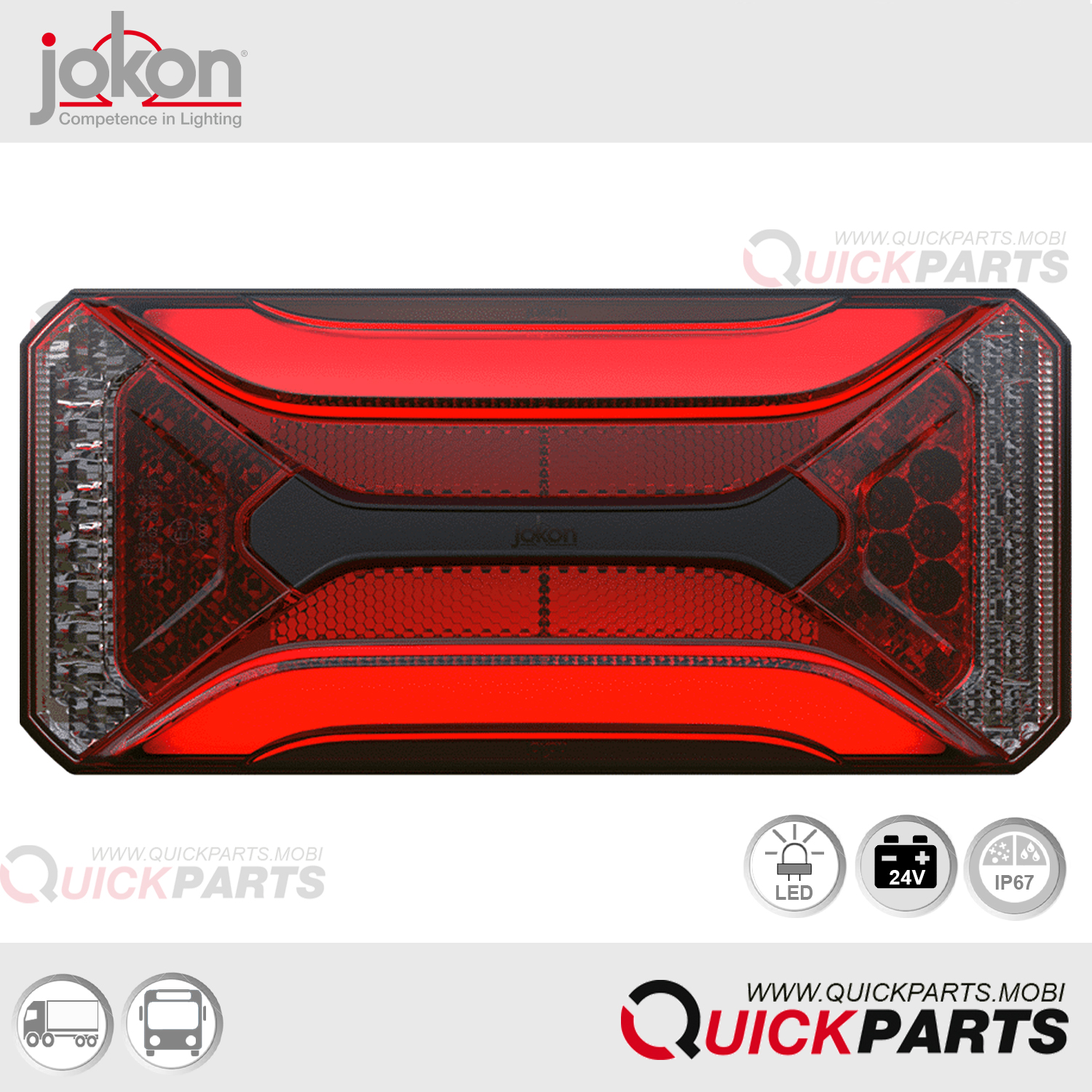

Jokon 10.3000.500
Multi-function LED rear light with integrated reflex reflector
High level of sealing for demanding operating conditions
Designed for trailers, trucks and commercial vehicles operating on 24 V
5-FUNCTION LED LIGHT WITH REFLEX REFLECTOR
- Direction indicator (DI)
- Stop light (ST)
- Tail light (TL)
- Reverse light (RV)
- Rear fog light (FL)
TECHNICAL SPECIFICATIONS
Rated voltage: 24 V
JOKON Reference: 10.3000.500
Type / Model: BBSWNR 940
Series: L 940
Designation: 5-function light + reflex reflector
Light technology: Full LED
Housing material: PC (polycarbonate)
Lens colour: Red / clear (red-clear)
Connection: Cable
Cable length: 500 mm
Operating temperature: –20 °C to +50 °C
Ingress protection: IP67
ECE approval: E13-36313
ABOUT JOKON LED MULTIPLE FUNCTION LIGHT L 940
Integrated cold-load simulation circuits on all functions reduce undesirable glow effects and improve trailer detection. Highly efficient, brand-name LEDs, combined with a design that meets the highest technical and quality standards, characterize this next-generation lighting system.
- Indicator function with LED defect control circuit (LDC)
- incl. concealed breathable membrane for pressure compensation
- mounting: horizontally or vertically
- design cover for masking the fastening screws
- designed for surface or (deepend)
- Integrated could query simulation
- D-approval, combination wirth other lights possible
- Retaining clips separate
ABOUT JOKON
In the JOKON range, you will find high – quality lights for any application that enhance the individual design of your vehicle and set highlights.
Whether you are looking for a light for a bus, a tractor, a wheelchair, a camper or a trailer.
The range extends from normal bulb lights to sophisticated LED multiple function lights.
