Description
Jokon 10.3200.011, E13-36079, WBBSNW 3600 LH

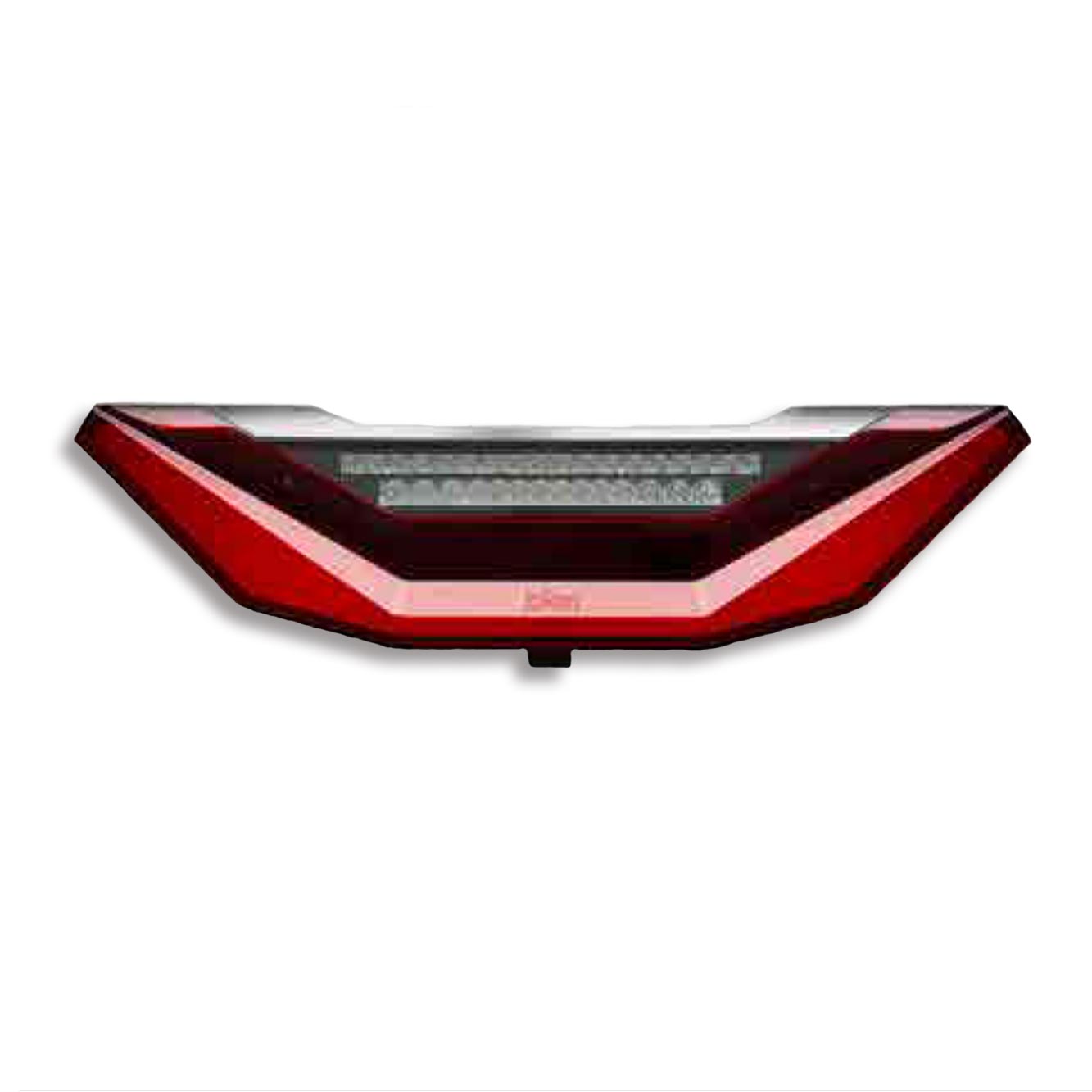

Without any doubt a highlight in the now already more than 70 years lasting success story of our company and worthy successor of various trend-setting Jokon lights. An LED multiple function light designed according to the most modern aspects with integrated LED monitoring, optionally perfectly complementable by the also newly developed „Bridgelight“, let YOUR vehicle appear in a most modern design.
Features:
- LED multiple function light (LED-MFL)
- Variants with sequential indicator available (WBL)
- Integrated monitoring – SIM 100 (motor cars), SIM 2000 (trailer)
- Sealed in a waterproofed manner and ready for plug-in
- Can be supplemented by „Bridgelight“
- Customer exclusive design panel on request
- PC-ABS / PMMA
- Connector 2 x 3-pin Delphi
Technical Data:
- Voltage: 12V
- Power: 27/25/8/5/16 W
- Installation: horizontal 0-20°
- Material: PC-ABS / PMMA
- Monitoring: SIM 2000
- Weight: 1.35 Kg
- Reference on the lens: Jokon E13-36079
- Reference: Jokon 10.3200.011
- Type: WBBSNW 3600 LH
- IP 67: Code, International Protection Marking.
Dust tight: No ingress of dust; complete protection against contact (dust tight)
Immersion up to 1 m: Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 m of submersion).
Ingress Protection code documentation
About Jokon
In the JOKON range, you will find high – quality lights for any application that enhance the individual design of your vehicle and set highlights.
Whether you are looking for a light for a bus, a tractor, a wheelchair, a camper or a trailer.
The range extends from normal bulb lights to sophisticated LED multiple function lights.
